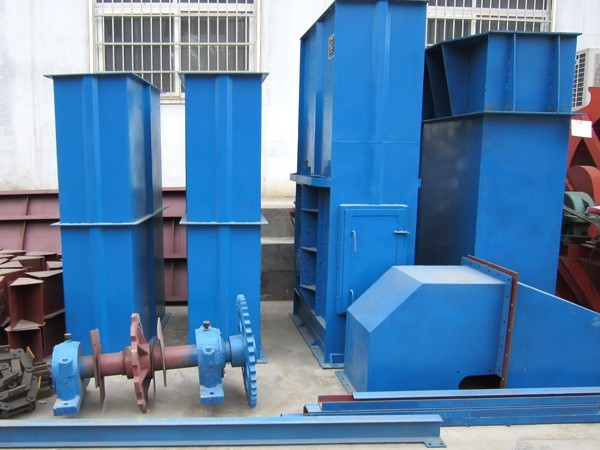

Bucket Elevator

Bucket Elevator

Bucket Elevator

Lift height: 28-32.7 m

Throughput: 3-60m³/h

Applied material: coal, cement, stone, sand, clay and ore

Email us: sell@hxjq.com
Get Latest Price Chat Online

Some Common Knowledge of Bucket Elevator

Bucket elevator is one of the leading products of our company. According to the material characteristics and the use of the the environment, the bucket elevator is divided into the belt bucket elevator, the chain bucket elevator, the pate chain bucket elevator and the wire rope core belt bucket elevator.

The Significant Advantages of Bucket Elevator

1. small driving power.

2. Wider application range.

This machine not only can convey the power materials, but also those large-size materials also can use it.

3. Credible operation.

The advanced design guarantees the credibility of the whole machine, and the no-breakdown time can be longer than 20000 hours.

4. Long lifespan.

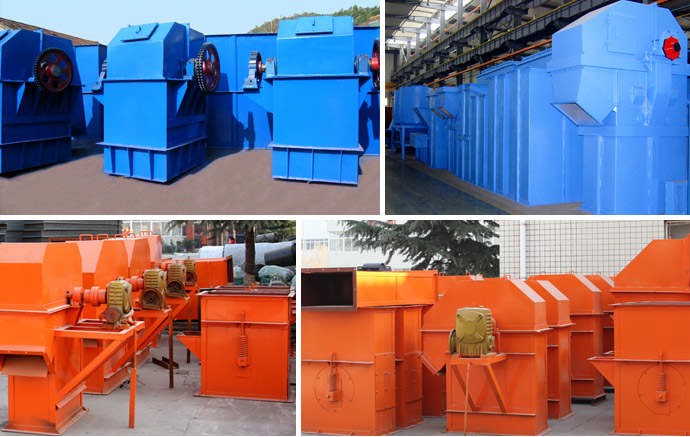

bucket_elevator

Collision and impacting nearly won't be happened in the process, so it owns the long lifespan.

The Brief Introduction to Bucket Elevator

Bucket elevator is suitable for vertical transport of powder, granular and small pieces of materials. It has the advantages of simple structure, stable operation, high degree of improvement and long service life, etc. It is widely used in building materials, chemicals, coal, electric power, port and other industries in the materials transport system.

Technical Data

Technical parameters of ring chain bucket elevator

Specification Max.lifting height
(m)
Conveying capacity
(m³/h)
TH160 25 7-12
TH200 28 8-15
TH250 30 10-25
TH300 30 25-35
TH315 40 30-40
TH400 40 45-60
TH500 40 65-80
TH630 40 100-120
TH800 40 130-150

Technical parameters of wire belt bucket elevator

Specification Max. lifting height
(m)
Convrying capacity
(m³/h)
TDG160 80 34
TDG200 80 45
TDG250 80 71
TDG315 80 101
TDG400 80 158
TDG500 80 218
TDG630 80 345
TDG800 80 491

Plate chain bucket elevator

Specification Max.lifting height
(m)
Max. lifting capacity
(m³/h)
NE15 40 16
NE30 59 31
NE50 62 60
NE100 58 110
NE150 65 170
NE200 73 220
NE300 61 320
NE400 47 420
NE500 58 500
