Cylinder capacity: 9-285m³
Processing capacity: 10-30t/h
Application area: metallurgy industry, chemical industry, building material, mining machinery.

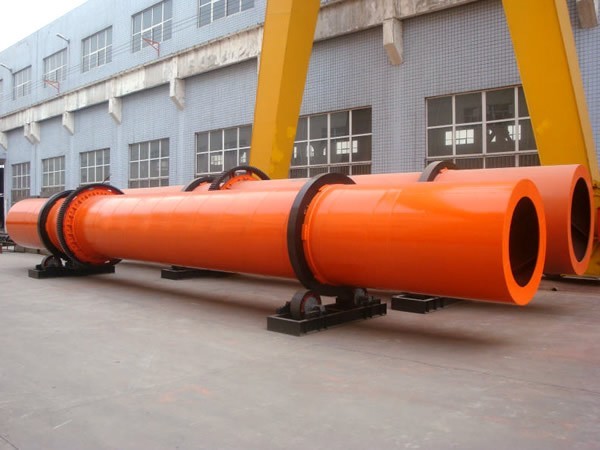

Drying machine is mainly used for drying the materials with the certain degree of humidity and particles in some fields such as ore dressing, building materials, metallurgy and the chemical industry. This machine has the strong adaptation to all kinds of materials, whose operation is simple, so it can be widely used in our daily life. Industrial dryer made by our company has been upgraded when it is used for drying slag, tailing, slime, lignite in order to improve the efficiency of those materials while lowering the cost.
Spec./m (Dia.×Length) |
Capacity (t/h) |
Highest Inlet Air Temperature (℃) |
Φ1.2×8.0 | 1.9~2.4 | 700~800 |
Φ1.2×10 | 2.4~3.0 | 700~800 |
Φ1.5×12 | 4.5~5.7 | 700~800 |
Φ1.5×14 | 5.3~6.6 | 700~800 |
Φ1.5×15 | 5.7~7.1 | 700~800 |
Φ1.8×12 | 6.5~8.1 | 700~800 |
Φ1.8×14 | 7.6~9.5 | 700~800 |
Φ2.2×12 | 9.7~12.2 | 700~800 |
Φ2.2×14 | 11.4~14.2 | 700~800 |
Φ2.2×16 | 13.0~16.2 | 700~800 |
Φ2.4×14 | 13.5~16.9 | 700~800 |
Φ2.4×18 | 17.4~21.7 | 700~800 |
Φ2.4×20 | 19.3~24.1 | 700~800 |
Φ2.4×22 | 21.2~26.5 | 700~800 |
Φ2.6×24 | 27.2~34.0 | 700~800 |
Φ3.0×20 | 30.1~37.7 | 700~800 |
Φ3.0×25 | 37.7~47.1 | 700~800 |
Φ3.2×25 | 42.9~53.6 | 700~800 |
Φ3.6×28 | 60.8~76.0 | 700~800 |
Technical parameters of indirect heat dryer:
Shell diameter ×shell Length Items |
Shell cubage (m³) |
Highest inlet air temperature (℃) |
Φ1.5×15m | 20.27 | 850 |
Φ1.5×17m | 22.97 | |
Φ1.5×19m | 25.68 | |
Φ1.8×21m | 35.91 | 850 |
Φ1.8×23m | 39.33 | |
Φ1.8×25m | 42.75 | |
Φ2.2×21m | 58.10 | 850 |
Φ2.2×23m | 63.61 | |
Φ2.2×25m | 69.15 |
