Processing ability: 0.2–16 m³/min
Rotation speed: 191–400 r/min
Applied material: non-ferrous metals, ferrous metals, precious metals, non-metallic mineral, chemical raw materials, etc

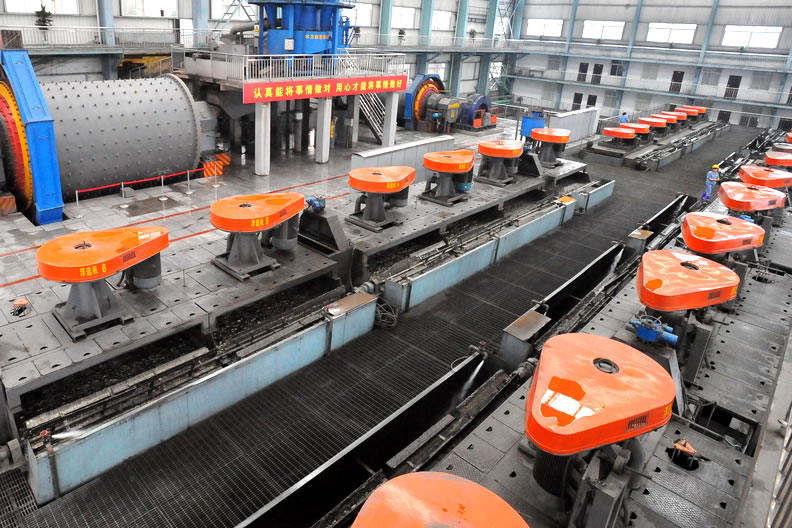

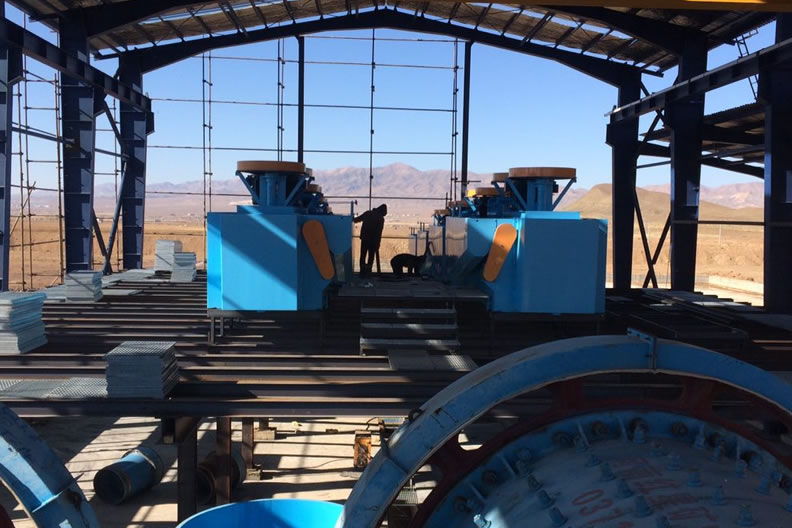

Flotation machine is used for extracting of metals like gold, argent, iron, lead, zinc, molybdenum, nickel and alumimum. It is also suitable for extracting of ferrrous metal and non-metals.
The impellers are driven through V-belt transmission, which brings centrifugal effect to form the negative pressure. On the one hand, the flotation machine inhales sufficient air to mix with ore slurry. On the other hand, it stirs ore slurry and mix with medication to form the mineralized forth. To adjust the height of the flashboard to control the liquid level and make the useful froth scraped by loam board.
Usage: to check the bolts before starting the machine and to use hand instead of impellers to prevent the sediment from adding the burden of electromotor. To adjust the height of strobe carefully to keep the stabilization of liquid level and scrape the mineralized froth to the launder. The impellers and stators should have a distance and should be changed when they are worn. The bearing in the pump should be maintained every three months.
Easy wear part: impellers and stators.
| Specification Model |
Effective cubage （m³） |
Processing capacity （m³/min） |
| XJK-0.35 | 0.35 | 0.18-0.4 |
| XJK-0.62 | 0.62 | 0.3-0.9 |
| XJK-1.1 | 1.1 | 0.6-1.6 |
| XJK-2.8 | 2.8 | 1.5-3.5 |
| XJK-5.8 | 5.8 | 5-7 |
| SF-0.37 | 0.37 | 0.2-0.4 |
| SF-0.7 | 0.7 | 0.3-0.9 |
| SF-1.2 | 1.2 | 0.6-1.6 |
| SF-2.8 | 2.8 | 1.5-3.5 |
| SF-4 | 4 | 2-4 |
| SF-8 | 8 | 4-8 |
| SF-10 | 10 | 5-10 |
| SF-20 | 20 | 5-20 |
| JJF-2 | 2 | 1-3 |
| JJF-4 | 4 | 2-4 |
| JJF-8 | 8 | 4-8 |
| JJF-10 | 10 | 5-10 |
| JJF-16 | 16 | 5-16 |
| JJF-20 | 20 | 5-20 |
