Processing ability: 0.26–30 m³
Rotate speed: 200–530 r/min
Applied material: ore slurry, etc

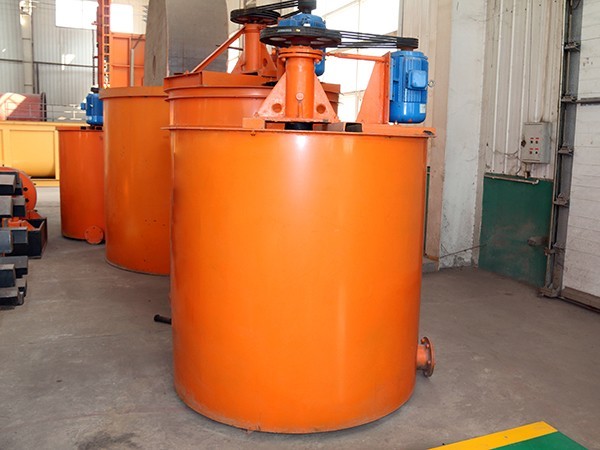

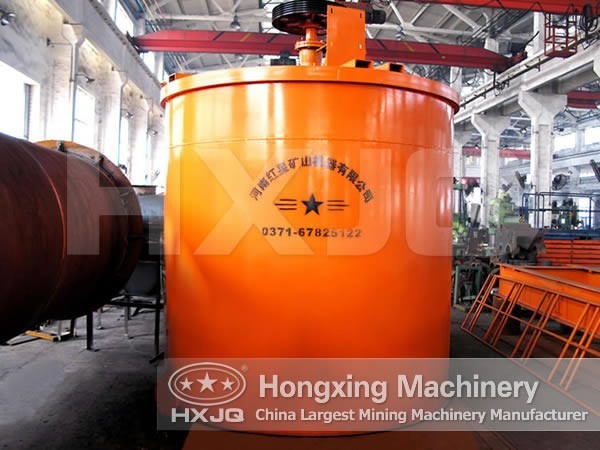

Mixer is used to make the medical and the pulp fully being mixed before the flotation separation process in order to make the medical reach the result. This machine is applied for the mixing the chemical and the pulp whose concentration is no more than 30% while the density of the pulp is no more than 3.5.
the closed cycling movement will be caused between the chemical and pulp because of the movement of the impeller while mixer is working, so it can make the chemical and pulp fully be mixed, and then the average suspension liquid will be discharged from the overflow port.
| Specification Model |
Effective cubage(m³) |
Rotate speed （r/min） |
| XB-10×10 | 0.58 | 390 |
| XB-12×12 | 1.18 | 390 |
| XB-15×15 | 2.2 | 280 |
| XB-20×20 | 5.6 | 210 |
| XB-25×25 | 11.2 | 190 |
| XB-30×30 | 19 | 140 |
| XB-35×35 | 29 | 230 |
| XB-40×40 | 45 | 210 |
| XBT-10×15 | 1 | 510 |
| XBT-15×20 | 2.9 | 400 |
| XBT-20×20 | 5.6 | 312 |
| XF-20×20 | 7.07 | 82.5 |
| XF-25×30 | 13.5 | 57.6 |
| XF-30×30 | 22.97 | 50.0 |
| XF-35×40 | 35.6 | 41.0 |
| XF-40×45 | 52.78 | 33.5 |
| XF-45×50 | 74.75 | 33.5 |
| XF-50×56 | 102.1 | 30.6 |
| XF-55×60 | 135.4 | 24.4 |
