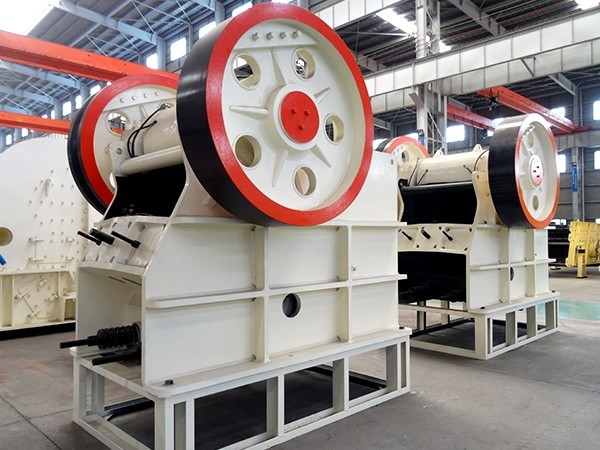

Primary Crusher

Processing capacity: 1-2200t/h

Feeding size: 125-250mm

Applied material: limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc

The Handling Materials and Application of Primary Crusher:

1. Primary crusher Widely applied in mining, road&railway, concrete, chemical and building material industries.

2. Ores and rocks with various hardness

3. Concrete basis and steel structure basis

4. Stationary, half-mobile and mobile applications

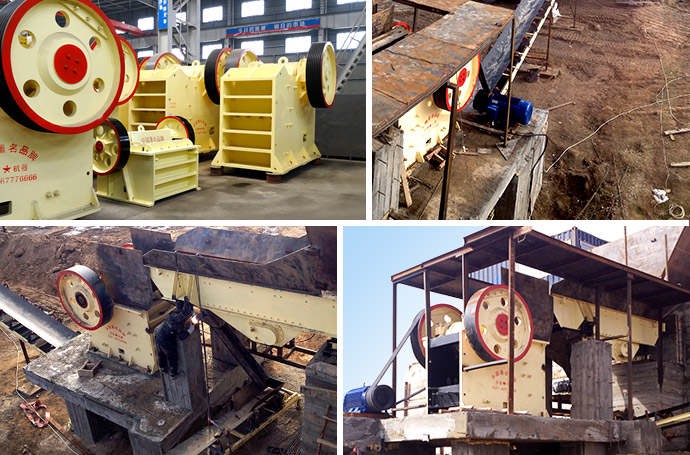

primary_crusher

The Performance Characteristics of Primary Crusher:

High reduction ratio, uniform production size, long service life, simple construction, excellent productivity, easy maintenance, low energy consume and so on, they are the priority products as the primary crushing.

Technical Data

Model	Max.feeding size (mm)	Processing capacity (t/h)
PE-150×250	125	1-3
PE-200×300	180	2-6
PE-200×350	180	3-10
PE-250×400	210	5-21
PE-400×600	340	16-60
PE-500×750	425	40-110
PE-600×750	500	80-240
PE-600×900	500	50-160
PE-750×1060	630	110-320
PE-800×1060	640	130-330
PE-830×1060	650	150-336
PE-870×1060	660	190-336
PE-900×1060	685	230-390
PE-900×1200	750	220-380
PE-1000×1200	850	315-500
PE-1200×1500	1020	400-800
PE-1500×1800	1200	500-1000
PEX-150×750	120	8-25
PEX-250×750	210	13-35
PEX-250×1000	210	16-52
PEX-250×1200	210	20-61
PEX-300×1300	250	16-105
