Puzzolana Crusher

Puzzolana Crusher

Puzzolana Crusher

Processing capacity: 1-2200t/h

Feeding size: 125-250mm

Applied material: limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc

Email us: sell@hxjq.com
Get Latest Price Chat Online

The Detailed Description of Puzzolana Crusher:

This machine is ideal for primary and secondary crushing, which is suitable for crushing a variety of soft and hard ores and rocks, whose largest compression resistance is under 320MPa, and the maximum size of to-be-fed materials must be less than what is required according to the maximum specification of technical parameters.

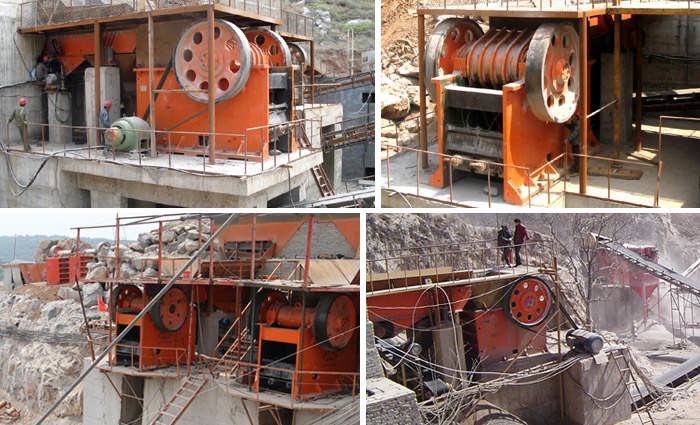

puzzolana_crusher

The Performance Characteristics of Puzzolana Crusher:

1. The reduction ratio is large and the production size is even.

2. The adjustment range of the outlet is big which can satisfy the requirement of different customers.

3. Adjustment device of the spacer style discharging mouth is convenient and reliable.

4. The cavity of jaw crusher is deep, so it prompts the feeding capacity and output.

The Handling Materials of Puzzolana Crusher:

This machine can crush various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc, and the largest compression resistance of the material being crushed is 320MPa.

Technical Data

Model Max.feeding
size (mm)
Processing
 capacity
(t/h)
PE-150×250 125 1-3
PE-200×300 180 2-6
PE-200×350 180 3-10
PE-250×400 210 5-21
PE-400×600 340 16-60
PE-500×750 425 40-110
PE-600×750 500 80-240
PE-600×900 500 50-160
PE-750×1060 630 110-320
PE-800×1060 640 130-330
PE-830×1060 650 150-336
PE-870×1060 660 190-336
PE-900×1060 685 230-390
PE-900×1200 750 220-380
PE-1000×1200 850 315-500
PE-1200×1500 1020 400-800
PE-1500×1800 1200 500-1000
PEX-150×750 120 8-25
PEX-250×750 210 13-35
PEX-250×1000 210 16-52
PEX-250×1200 210 20-61
PEX-300×1300 250 16-105
