Cylinder capacity: 9-285m³
Processing capacity: 10-30t/h
Application area: metallurgy industry, chemical industry, building material, mining machinery.

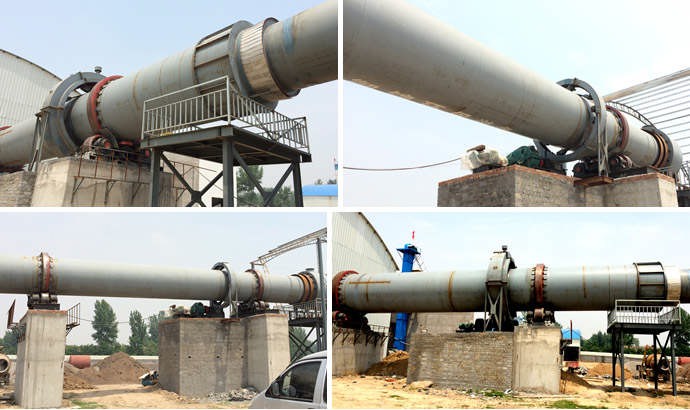

The rotary dryer is widely used in building material, metallurgy, chemical engineering, cement industry. It is used to dry slag, limestone, coal powder, clay, and so on. The rotary dryer mainly consists of the rotary body, lifting plate, transmission device, supporting device, sealing ring, and so on. It is of reasonable structure, high output, low energy consumption, and simple operation, etc.
According to the working principle, the rotary dryer can be divided into the single drum dryer, double drum dryer, three drum dryer, rotary dryer, industrial drum dryer, and so on.
In terms of the raw material, there are many kinds of rotary dryers, such as the talcum dryer, Kaolin dryer, lignite dryer, sludge dryer, sand dryer, river sand dryer, slag dryer, etc.
Compared with those of the other common drying machines, the coal consumption and power consumption of the rotary dryer, made by Hongxing, a professional drying equipment manufacturer, can be decreased by more than 10%-15% and the output of it can be increased by more than 10%-15% per hour. You're welcomed to visit our plant and purchase our products with the reasonable prices.
| Spec./m (Dia.×Length） |
Capacity （t/h） |
Highest Inlet Air Temperature （℃） |
| Φ1.2×8.0 | 1.9～2.4 | 700～800 |
| Φ1.2×10 | 2.4～3.0 | 700～800 |
| Φ1.5×12 | 4.5～5.7 | 700～800 |
| Φ1.5×14 | 5.3～6.6 | 700～800 |
| Φ1.5×15 | 5.7～7.1 | 700～800 |
| Φ1.8×12 | 6.5～8.1 | 700～800 |
| Φ1.8×14 | 7.6～9.5 | 700～800 |
| Φ2.2×12 | 9.7～12.2 | 700～800 |
| Φ2.2×14 | 11.4～14.2 | 700～800 |
| Φ2.2×16 | 13.0～16.2 | 700～800 |
| Φ2.4×14 | 13.5～16.9 | 700～800 |
| Φ2.4×18 | 17.4～21.7 | 700～800 |
| Φ2.4×20 | 19.3～24.1 | 700～800 |
| Φ2.4×22 | 21.2～26.5 | 700～800 |
| Φ2.6×24 | 27.2～34.0 | 700～800 |
| Φ3.0×20 | 30.1～37.7 | 700～800 |
| Φ3.0×25 | 37.7～47.1 | 700～800 |
| Φ3.2×25 | 42.9～53.6 | 700～800 |
| Φ3.6×28 | 60.8～76.0 | 700～800 |
Technical parameters of indirect heat dryer:
| Shell diameter ×shell Length Items |
Shell cubage （m³） |
Highest inlet air temperature （℃） |
| Φ1.5×15m | 20.27 | 850 |
| Φ1.5×17m | 22.97 | |
| Φ1.5×19m | 25.68 | |
| Φ1.8×21m | 35.91 | 850 |
| Φ1.8×23m | 39.33 | |
| Φ1.8×25m | 42.75 | |
| Φ2.2×21m | 58.10 | 850 |
| Φ2.2×23m | 63.61 | |
| Φ2.2×25m | 69.15 |
