Sand Screening Machine

Sand Screening Machine

Sand Screening Machine

Processing capacity: 8-800m³/h

Vibrating power: 800-970r/min

Max. feeding size: 400mm

Email us: sell@hxjq.com
Get Latest Price Chat Online

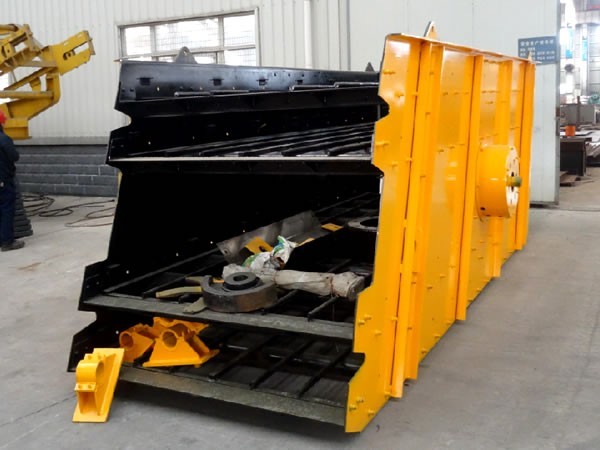

The Introduction to Sand Screening Machine:

The sand screening machine, the movement track of which is a circumference, is a kind of new-type and high-efficiency vibrating screen with multiple layers. It has many features, such as reliable structure, strong vibrating force, high screening efficiency, less noise, etc. The sand screening machine is widely used in mining, building material, etc.

sand_screening_machine

The Features of the Sand Screening Machine in Property:

1. Due to the intense vibration of the screen box, the sieve meshes will hardly ever get stuck by the material, which can guarantee the quite high screening efficiency and productivity of the sand screening machine.

2. The structure of the sand screening machine is simple so it is convenient for the user to take down and replace the screen deck.

3. It takes less energy to screen each ton of the material.

Some Notices in the Maintenance:

The sand screening machine must be started without any material on the screen deck. Only when the machine is in the stable operation can the material be fed into it. Before the stop of the machine, feeding should be stopped. The sand screening machine can not be stopped until there is no material on the screen deck. The operation of the machine should be looked into usually. If there is some abnormal motion or noise of it, it should be stopped in time to be checked.

Technical Data

Model Max. feeding
size (mm)
Processing
 capacity
(m³/h)
2YK1225 400 8-60
3YK1225 400 10-70
2YK1230 400 12-78
3YK1230 400 13-80
2YK1237 400 15-86
3YK1237 400 16-90
2YK1535 400 20-125
3YK1535 400 21-125
2YK1545 400 22-150
3YK1545 400 22-150
4YK1545 400 22-155
2YK1548 400 22.5-162
3YK1548 400 22.5-162
4YK1548 400 22.5-162
2YK1848 400 25-206
3YK1848 400 32-276
4YK1848 400 32-285
2YK1854 400 32-312
3YK1854 400 32-312
4YK1854 400 32-336
2YK2160 400 50-475
3YK2160 400 50-475
4YK2160 400 50-497
2YK2460 400 65-550
3YK2460 400 70-620
4YK2460 400 80-680
2YK2870 400 120-680
3YK2870 400 180-720
2YK3072 400 200-700
3YK3072 400 230-800
