Processing ability: 770-2800T/24H
Screw diameter: 1500~3000mm
Material handling: limestone, talc, graphite, barite, mica, kaolin.
Spiral washer is widely used in the separation of ore in closed circuits with ball mills, grading ore and fine slit in gravity mills, grading granularity and flow of metal ore-dressing, and de-sliming and dehydrating in washing.

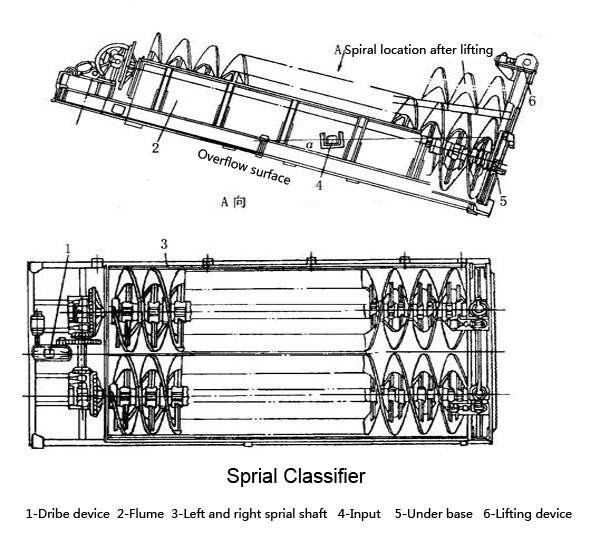

Spiral washer is consists of cell body, speed reducer, motor shaft, central shaft, spiral scatters, support parts, which can be applied in metallurgy, building materials, water and electricity industries washing, grading, impurity, etc.
.jpg)
1. This kind of spiral washer is slope slightly installed, it has highly efficiency of cleaning the sand materials.
2. The spiral washer can handle the materials which size within 0-30mm, it can eliminate the dust ,clay very quickly and totally.
3. It is easy to operation and very easy to maintain.
| Model | Spiral Diameter (mm) |
Spiral rotate speed (r/min) |
| FG-3 | 300 | 12-30 |
| FG-5 | 500 | 8-12.5 |
| FG-7 | 750 | 6-10 |
| FG-10 | 1000 | 5-8 |
| FC-10 | ||
| FG-12 | 1200 | 4-6 |
| FC-12 | ||
| 2FG-12 | ||
| 2FC-12 | ||
| FG-15 | 1500 | 4-6 |
| FC-15 | ||
| 2FG-15 | ||
| 2FC-15 | ||
| FG-20 | 2000 | 3.6-5.5 |
| FC-20 | ||
| 2FG-20 | ||
| 2FC-20 | ||
| FG-24 | 2400 | 3.67 |
| FC-24 | ||
| 2FG-24 | ||
| 2FC-24 | ||
| 2FG-30 | 3000 | 3.2 |
| 2FC-30 |
