Trommel Screen

Trommel Screen

Trommel Screen

Processing ability: 12–150 t/h

Feeding size: 50–150 mm

Applied material: slag, coal gangue, sand, gravel aggregate, etc

Email us: sell@hxjq.com
Get Latest Price Chat Online

Some Common Knowledge of Trommel Screen

Trommel screen can be used for the classification of the materials. Screening vet: 60-200 meshes, the motor power: 0.75-3KW, the output: 500-1500 KG/H.

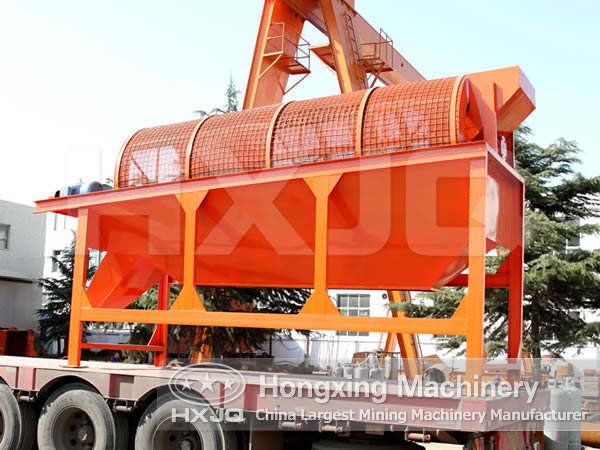

trommel_crusher

The Significant Advantages of Trommel Screen

1. small sloping angle when installing the machine, so it is not easy to cause the blocking.

2. Small occupation area, so it is convenient for the craftsmanship' assignment.

3. Lower noise and less dust pollution.

4. Stable operation.

5. Higher screening ratio.

6. Larger output.

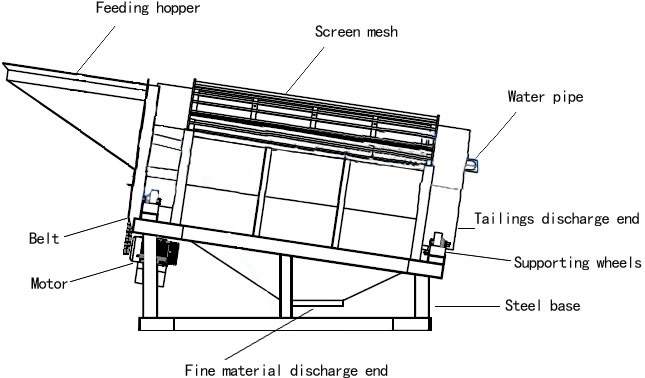

trommel_screen

Technical Data

Model
Yield(m³/h)
Power
(kw)
Sieve hole(2mm) Sieve hole(30mm)
YTS1230 12 100 5.5
YTS1240 14 120 5.5
YTS1250 15 140 5.5
YTS1530 18 150 5.5
YTS1540 18 150 7.5
YTS1550 20 180 11
YTS1560 22 200 11
YTS2040 25 250 15
YTS2050 30 300 15
YTS2060 35 350 18.5
