Processing capacity: 8-800m³/h
Vibrating power: 800-970r/min
Max. feeding size: 400mm

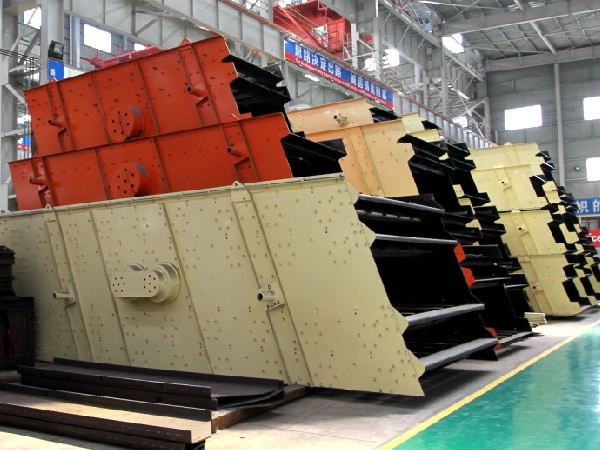

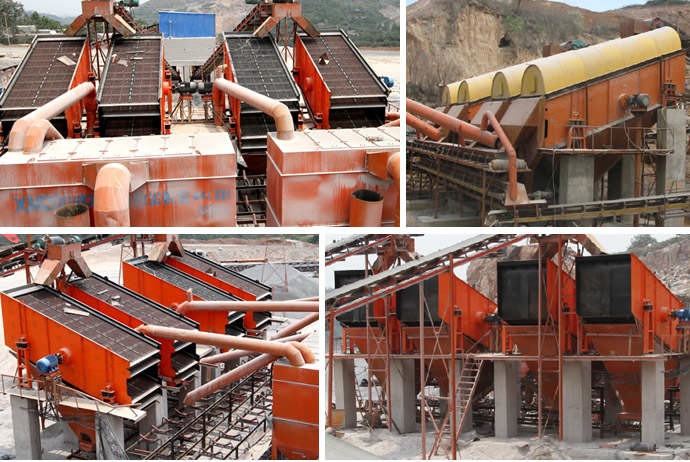

Vibrating screen moves on a circular motion. It is a multi-layer and high efficiency vibrating screen. Advantages are: stable structure, strong vibrating force, high efficiency, low noise pollution, easy to maintain and durability. It can be widely used in mine, construction, transportation, energy and chemical industries.
1. higher screening and production efficiency.
The strong vibration of the screening box can decrease the blockage of the materials, which can make the screen own the higher screening and production efficiency.
2. simple structure and energy saving.
The simple structure can make the screen disassembled conveniently, so it can save much power every ton.
Note: according to different demands of customers, our company can manufacture vibrating screen with different specification and vibrating modes.
Model | Max. feeding size (mm) |
Processing capacity (m³/h) |
2YK1225 | 400 | 8-60 |
3YK1225 | 400 | 10-70 |
2YK1230 | 400 | 12-78 |
3YK1230 | 400 | 13-80 |
2YK1237 | 400 | 15-86 |
3YK1237 | 400 | 16-90 |
2YK1535 | 400 | 20-125 |
3YK1535 | 400 | 21-125 |
2YK1545 | 400 | 22-150 |
3YK1545 | 400 | 22-150 |
4YK1545 | 400 | 22-155 |
2YK1548 | 400 | 22.5-162 |
3YK1548 | 400 | 22.5-162 |
4YK1548 | 400 | 22.5-162 |
2YK1848 | 400 | 25-206 |
3YK1848 | 400 | 32-276 |
4YK1848 | 400 | 32-285 |
2YK1854 | 400 | 32-312 |
3YK1854 | 400 | 32-312 |
4YK1854 | 400 | 32-336 |
2YK2160 | 400 | 50-475 |
3YK2160 | 400 | 50-475 |
4YK2160 | 400 | 50-497 |
2YK2460 | 400 | 65-550 |
3YK2460 | 400 | 70-620 |
4YK2460 | 400 | 80-680 |
2YK2870 | 400 | 120-680 |
3YK2870 | 400 | 180-720 |
2YK3072 | 400 | 200-700 |
3YK3072 | 400 | 230-800 |
