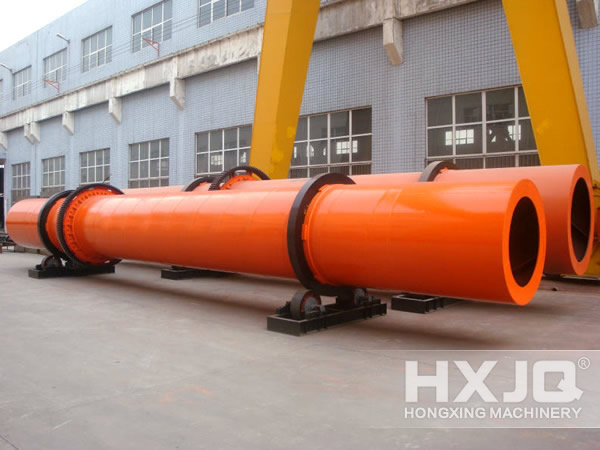

Woodchip Dryer

Woodchip Dryer

Woodchip Dryer

Cylinder capacity: 9-285m³

Processing capacity: 10-30t/h

Application area: metallurgy industry, chemical industry, building material, mining machinery.

Email us: sell@hxjq.com
Get Latest Price Chat Online

The Introduction to Wood Chip Dryer:

As a necessary drying equipment in the mineral processing line, the wood chip dryer is widely used in building material, metallurgy, chemical engineering, cement industry, etc. It is mainly used to dry gravel, limestone, coal powder, slag, clay, and so on.

The Advantages of the Wood Chip Dryer:

Hongxing wood chip dryer is of high adaptability, which means that it can dry many kinds of materials. Besides, it has many other advantages, such as simple and reliable operation, reasonable structure, high output, low energy consumption, etc.

The Energy Consumption of the Wood Chip Dryer Made by Hongxing:

The energy consumption is still an important standard for users to select and purchase wood chip dryers. The biggest superiority of the wood chip dryer made by Hongxing is low energy consumption for adopting the domestic advanced techniques. The energy consumption of the wood chip dryer made by Hongxing is 30% lower than that of the one made by other domestic manufacturers. Lot of production cost can be saved with our wood chip dryer for users so that it has been approved and praised by them.

Technical Data

Spec./m
(Dia.×Length)
Capacity
(t/h)
Highest Inlet
Air Temperature
(℃)
Φ1.2×8.0 1.9~2.4 700~800
Φ1.2×10 2.4~3.0 700~800
Φ1.5×12 4.5~5.7 700~800
Φ1.5×14 5.3~6.6 700~800
Φ1.5×15 5.7~7.1 700~800
Φ1.8×12 6.5~8.1 700~800
Φ1.8×14 7.6~9.5 700~800
Φ2.2×12 9.7~12.2 700~800
Φ2.2×14 11.4~14.2 700~800
Φ2.2×16 13.0~16.2 700~800
Φ2.4×14 13.5~16.9 700~800
Φ2.4×18 17.4~21.7 700~800
Φ2.4×20 19.3~24.1 700~800
Φ2.4×22 21.2~26.5 700~800
Φ2.6×24 27.2~34.0 700~800
Φ3.0×20 30.1~37.7 700~800
Φ3.0×25 37.7~47.1 700~800
Φ3.2×25 42.9~53.6 700~800
Φ3.6×28 60.8~76.0 700~800

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Shell
 cubage
(m³)
Highest
inlet air
 temperature
(℃)
Φ1.5×15m 20.27 850
Φ1.5×17m 22.97
Φ1.5×19m 25.68
Φ1.8×21m 35.91 850
Φ1.8×23m 39.33
Φ1.8×25m 42.75
Φ2.2×21m 58.10 850
Φ2.2×23m 63.61
Φ2.2×25m 69.15
