Iron Ore Beneficiation Plant

Equipment Configuration:

Jaw crusher, ball mill, classifier, magnetic separator (flotation machine), concentrator, rotary dryer, etc.

The Process Flow of the Iron Ore Beneficiation Plant:

1. Crushing Ore.
Exploited magnetite is primarily crushed by the jaw crusher into the one with proper particle size, which will be evenly sent into the ball mill with the vibrating feeder.

2. Grinding Ore.

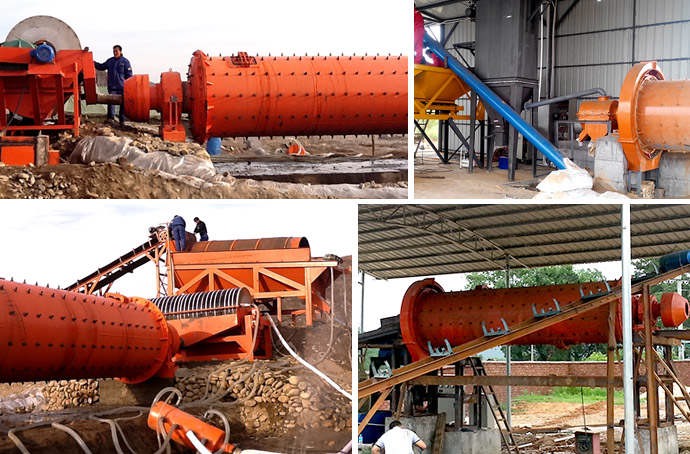

Next, the crushed iron ore will be ground by the ball mill then it will be separated by the classifier.

3. Ore Beneficiation.

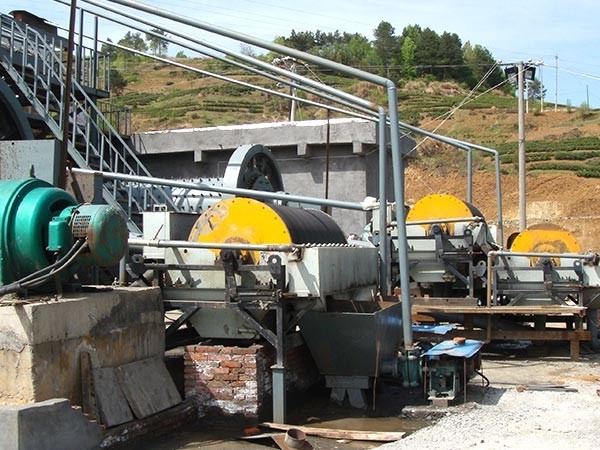

The iron ore mixture will be sent into the magnetic separator to get the required iron concentrate. If there are still some impurities of it, it should be completely separated by the flotation machine with different agents to get purer iron concentrate.

4. Drying Concentrate.
Due to some moisture inside the concentrate after the beneficiation, it should be processed by the concentrator and it will be dried by the rotary dryer to get the final product.

The Advantages of the Iron Ore Beneficiation Plant:

1. Fluent process flow, less occupied area, low investment.
2. High efficiency, high output.
3. Zero pollution, energy conservation.
