Crushing and Screening-Hongxing Machinery(HXJQ)

The Handling Materials of Crushing and Screening:

Crushing and screening plants are for limestone, silica, dolomite, wind fossils, coal gangue, coal. shale, gypsum, etc.

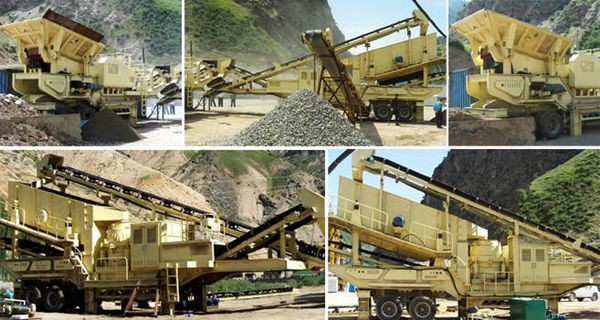

mobile_crusher

The Function and Benefits of Crushing and Screening:

Crushing and screening is very convenient and flexible. Stone can be easily transferred from one location to another, the raw materials can be broken around this place without being transported again, and mobile crusher also can be moved with the promotional exploitation of the raw material. So crushing and screening can save lots of money and energy.

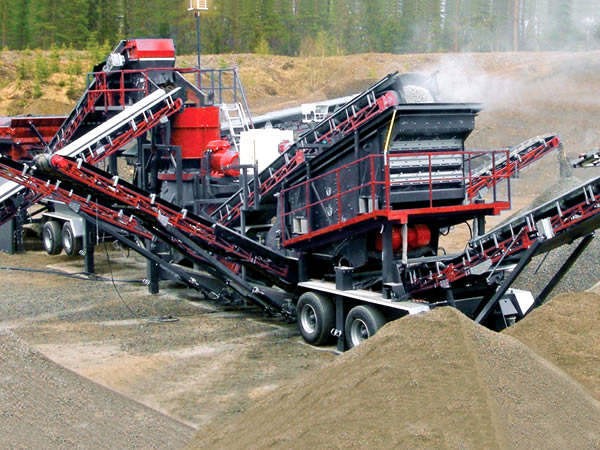

mobile_crusher

The Performance Characteristics of Crushing and Screening:

1. A complete line: all the machines are installed on the trailer, saves the occupation space, enhances the working efficiency.

2. Strong flexibility: it can be moved from one place to another place;

3. High efficiency.

4. Works well and easy maintenance.

Technical Data

MTN tire type mobile crushing and screening station

Series	Standard Model	Processing Capability (t/h)	Transport dimensions (mm)
MOBILE COARSE CRUSHING STATION	MTN96	70-200	13000x2950x4250
	MTN98	80-200	13000x2950x4250
	MTN106	90-300	14000x3000x4400
	MTN110	120-300	14000x3000x4400
	MTN1213C	80-200	13000x2950x4250
	MTN1316C	100-300	14000x3000x4400
MOBILE MEDIUM AND FINE CRUSHING STATION	MTN300	100-200	15500x2900x4200
	MTN400	150-300	16500x3100x4300
	MTN250	90-200	16500x3100x4300
	MTN1213	80-200	16000x2900x4300
	MTN1316	100-300	16500x3100x4500
	MTN0926	85-200	16500x3100x4300
	MTN1040	120-300	16500x3100x4400
MOBILE SCREENING STATION	MTN1865-3	65-200	14500x2900x4000
MOBILE SCREENING STATION	MTN2165-3	85-300	15000x2900x4400
MOBILE STATION FOR MEDIUM AND FINE CRUSHING AND SCREENING	MTN300S-3SII	100-200	15000x3000x4000
	MTN300S-3	100-200	15000x3000x4000
	MTN400S-3	150-300	15000x3000x4000
	MTNG400S-3SII	100-200	15000x3000x4000
	MTNG400S-3	100-200	15000x3000x4000
	MTN250S-3	90-200	15000x3000x4200
	MTN1213S-3	80-200	15000x3000x4200
	MTN1316S-3	100-300	15000x3000x4200
	MTN0926S-2	85-200	18000x3000x4200
	MTN1040S-2	120-300	18000x3000x4200
THREE COMBINATION MOBILE STATION	MTN1213-III	80-200	18200x2800x4350
	MTN1316-III	100-300	18200x3000x4200
	MTN1410-III	80-200	18200x2800x4200
	MTN1612-III	100-300	18200x3000x4200
FOUR COMBINATION MOBILE STATION	MTN100Y-2	50-100	15000x2650x4500
	MTN100Y-3	50-100	17500x2500x4000
	MTN150Y-3	70-150	17500x2500x4000
	MTN150R-3	60-150	17500x2500x4000
