Filtration Bags 96-3584
Blast capacity 6912-322560m3/min
More than 200 kinds of materials

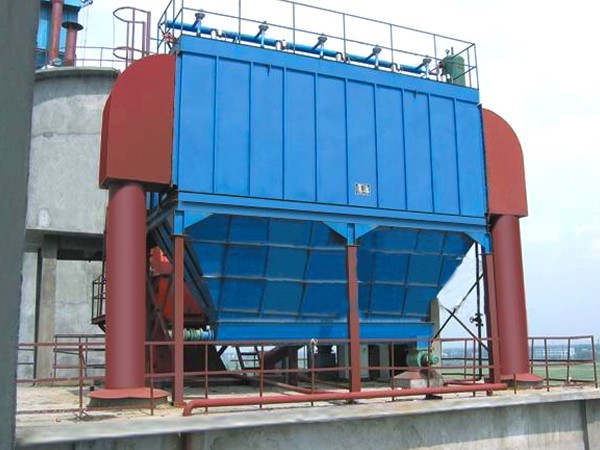

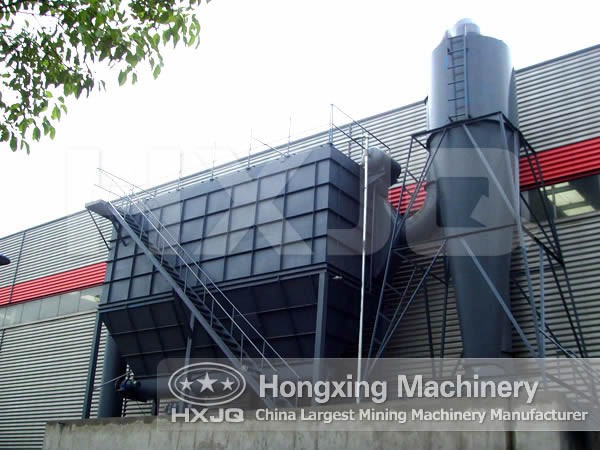

Dust Collector is a kind of decontamination plant, which is used to filter gas dust. It can be used in dry mortar production line, cement industry, chemical industry, power industry and iron steel industry, etc., and it also is a kind of new type environmental protection equipment.

1. High dust collecting efficiency, low energy consumption.
2. Filter bag with long service life as a result of new design dust colleting technology.
3. The final discharge gas concentration is less than 50mg/m³, reaching national standard of new environmental protection.
PPCS series air box pulse dust collector
| Model | Air volume (m³/h) |
Filtration velocity (m/min) |
Total filtra tion area (m²) |
Net filtration area (m²) |
| PPCS 32-3 | 6900 | 1.2-2.0 | 93 | 62 |
| PPCS 32-4 | 8930 | 124 | 93 | |
| PPCS 32-5 | 11160 | 155 | 124 | |
| PPCS 32-6 | 13390 | 186 | 155 | |
| PPCS 64-4 | 17300 | 248 | 186 | |
| PPCS 64-5 | 22300 | 310 | 248 | |
| PPCS 64-6 | 26700 | 372 | 310 | |
| PPCS 64-7 | 31200 | 434 | 372 | |
| PPCS 64-8 | 35700 | 496 | 434 | |
| PPCS 96-4 | 26800 | 372 | 279 | |
| PPCS 96-5 | 33400 | 465 | 372 | |
| PPCS 96-6 | 40100 | 557 | 465 | |
| PPCS 96-7 | 46800 | 650 | 557 | |
| PPCS 96-8 | 53510 | 744 | 650 | |
| PPCS 96-9 | 60100 | 838 | 744 | |
| PPCS96-2X5 | 66900 | 929 | 838 | |
| PPCS96-2X6 | 80700 | 1121 | 1028 | |
| PPCS96-2X7 | 94100 | 1308 | 1215 | |
| PPCS96-2X8 | 107600 | 1494 | 1401 | |
| PPCS96-2X9 | 121000 | 1681 | 1588 | |
| PPCS96-2X10 | 134500 | 1868 | 1775 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
