Mobile Cone Crusher-Hongxing Machinery(HXJQ)

Mobile cone crusher is widely applied in metallurgical, construction, road building, chemical and phosphatic industry.

Mobile cone crusher is suitable for hard and mid-hard rocks and ores, such as iron ores, copper ores, limestone, quartz, granite, gritstone, etc.

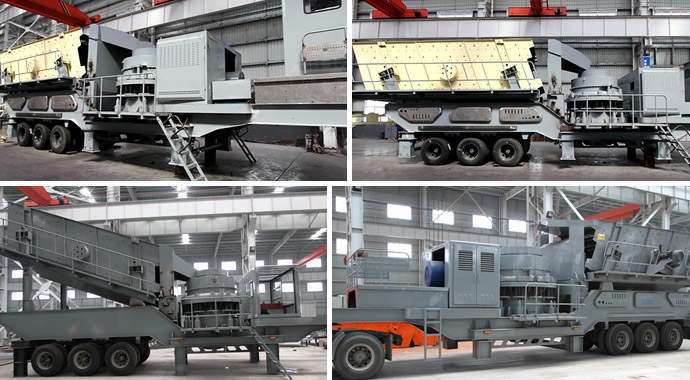

mobile_cone_crusher

1. Incorporated design.

2. Truck mounted.

3. Quick road transportation.

4. With support legs on truck, quick to set-up.

5. Maneuverability.

1. The crushed materials are of equal size, thus reducing circulating load.

2. Large and medium-sized crushers adopt hydraulic chamber-cleaning systems, which will help reduce the down time.

3. Cone crushers with different chambers are available, to meet our customers' requirements.

Technical Data

Track Wotetrack mobile sand making station

Model		WT0818	WT0926
Dimensions of Transmission Devices	Length	14000mm	14000mm
	Width	3200mm	3200mm
	Height	3600mm	3600mm
	Weight	30t	35t
Feeder	Hopper Volume	3m³	3m³
	Loading Height	2600mm	2600mm
	Models and Dimensions of Belt Conveyors	B1000×6000mm	B1000×6000mm
Crusher	Model	HVI0818	HVI0926
	Feeding Size	35mm	40mm
	Double Motor Power	2×90kw	2×132kw
Main Belt Conveyor	Dimensions(Width×Length)	1000×10000mm	1000×10000mm
Main Belt Conveyor	Dumping Height	3200mm	3200mm
Diesel Engine	Power	75kw	75kw
Diesel Engine	Manufacturer	Carter Perkins	Carter Perkins
The Main Machine	Power	202.5kw	286.5kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)	Wired/Wireless (optional)
