Feeding size 480-850mm
Processing capacity 45-500t/h
More than 200 kinds of materials

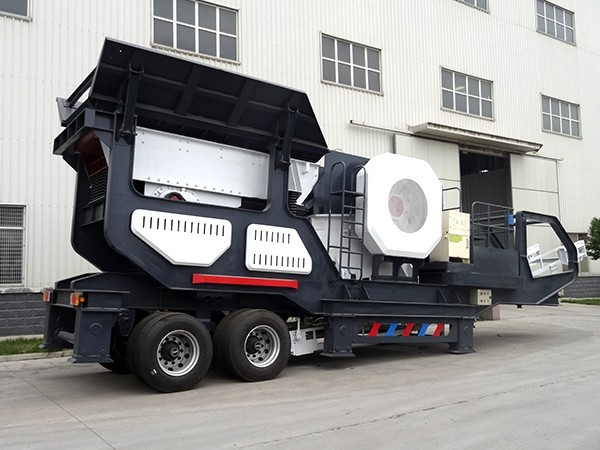

Mobile crushing station, which is also called Portable crusher, incorporates all the equipment together on one truck, which has high chassis, narrower body compared with other trucks,
which ensures the crushing plant can be easily transported on highways and moved to crushing sites, so it is able to achieve on-site crushing without material transporting from one place to another place.
.jpg)

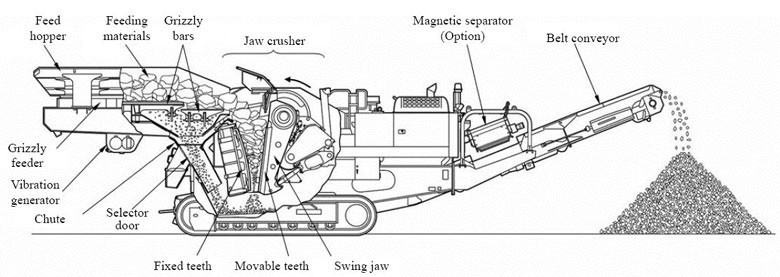

1. PE Series high-performance crusher.
2. The integration feeder and vibrating screen with crusher.
3. Belt conveyor under the screen. Vibrating screen and crusher integrated on-board.
4. Steering traction axis, convenient highway transportation and entry working site.

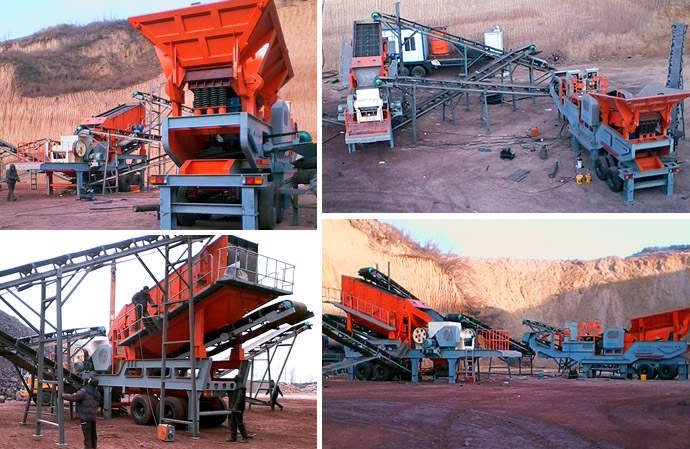

The mobile crushing and screening plants are composed of primary crushing and screening station and secondary one, belt conveyor, etc. Every Mobile crushing station is an independent working unit, which can respectively assume their different responsibility, and the belt conveyer is responsible for material transmitting and piling up between each crushing station.
Mobile crushing station
MOBLIE IMPACT CRUSHER TECHICAL PARAMETERS
| Model | The Maximum Feeding Size （mm） |
Production Capacity （t/h） |
| HX938F1210 | 350 | 70-130 |
| HX938FW1214 | 350 | 100-180 |
| HX1149F1315 | 500 | 130-250 |
| HX1349HD1110 | 400 | 112 |
| HX1349HD1315 | 700 | 280 |
MOBLIE JAW CRUSHER TECHNICAL PARAMETERS
| Model | Maximum Feeding Size(mm) |
Capacity(t/h) |
| HX938HD80 | 500 | 85-275 |
| HX1149HD98 | 550 | 110-350 |
| HX1349HD110 | 660 | 215-510 |
| HX1349HD125 | 800 | 280-650 |
Tire crushing mobile crushing station
Model HX938HD86 and HX1149HD98
| Model | HX938HD86 | HX1149HD98 |
| Transportation lenght(mm) | 12600 | 13500 |
| Transportation Width(mm) | 2600 | 2700 |
| Transportation Height(mm) | 3870 | 4200 |
| Maximum Lenght(mm) | 12500 | 14000 |
| Maximum Width(mm) | 4100 | 4500 |
| Maximum Height(mm) | 4100 | 4900 |
| Weight(t) | 39 | 57 |
| tIRE Configuration | Dualaxial | Dualaxial |
| Jaw Crusher | HD86 | HD98 |
| Maximum Feeding Size(mm) | 500 | 550 |
| Discharge opening range | 50-150 | 75-175 |
| Capacity(t/h) | 85-275 | 110-350 |
| Vibrating Feeder | ZSW380×95 | ZSW420×110 |
| Main Belt Conveyor | B800×8.5m | B1000×9.5m |
| Side-opening Belt conveyor(optional) | B500×3m | B650×3.5m |
| Gensrt(optional) | 200KW | 250KW |
| Iron separator(optional) | RCYD(C)-8 | RCYD(C)-10 |
Model HX1349HD110 and HX1349HD125
| Model | HX1349HD110 | HX1349HD125 |
| Transportation lenght(mm) | 14500 | 15200 |
| Transportation Width(mm) | 2800 | 2900 |
| Transportation Height(mm) | 4450 | 4500 |
| Maximum Lenght(mm) | 16100 | 16700 |
| Maximum Width(mm) | 5100 | 5100 |
| Maximum Height(mm) | 5000 | 5300 |
| Weight(t) | 55 | 65 |
| Tire Configuration | Dualaxial | Dualaxial |
| Jaw Crusher | HD110 | HD125 |
| Maximum Feeding Size(mm) | 660 | 800 |
| Discharge opening range | 100-200 | 125-225 |
| Capacity(t/h) | 215-510 | 280-650 |
| Vibrating Feeder | ZSW490×130 | ZSW490×130 |
| Main Belt Conveyor | B1000×11m | B1200×11m |
| Side-opening Belt conveyor(optional) | B650×4m | B650×4m |
| Gensrt(optional) | 270KW | 400KW |
| Iron separator(optional) | RCYD(C)-10 | RCYD(C)-12 |
Tire counterattack breaking mobile crushing station
Model HX938F1210 and HX938F1214 and HX1149F1315
| Model | HX938F1210 | HX938F1214 | HX1149F1315 |
| Transportation lenght(mm) | 12000 | 12000 | 13900 |
| Transportation Width(mm) | 2550 | 2550 | 2900 |
| Transportation Height(mm) | 3900 | 3900 | 4450 |
| Maximum Lenght(mm) | 12500 | 12500 | 13900 |
| Maximum Width(mm) | 3250 | 3260 | 3250 |
| Maximum Height(mm) | 5100 | 5200 | 5200 |
| Weight(t) | 39 | 44 | 54 |
| Impact crusher | PE-1210 | PE-1214 | PF-1315 |
| Maximum Feeding Size(mm) | 350 | 350 | 500 |
| Capacity(t/h) | 70-130 | 100-180 | 130-250 |
| Vibrating Feeder | ZSW950×3800 | ZSW950×3800 | ZSW110×4900 |
| Main Belt Conveyor | B800×8.5M | B800×8.5M | B1000×9.5M |
| Side-opening Belt conveyor(optional) | B500×3.2m | B500×3.2m | B650×4m |
| Gensrt(optional) | 320KW | 320KW | 400KW |
| iron separator(optional) | RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 |
Model HX938F1110 and HX1349F1315
| Model | HX938F1110 | HX1349F1315 |
| Transportation lenght(mm) | 15450 | 15450 |
| Transportation Width(mm) | 2950 | 2950 |
| Transportation Height(mm) | 4500 | 4500 |
| Maximum Lenght(mm) | 15450 | 15450 |
| Maximum Width(mm) | 3250 | 3250 |
| Maximum Height(mm) | 5200 | 5200 |
| Weight(t) | 62 | 62 |
| Impact crusher | HD1110 | HD1315 |
| Maximum Feeding Size(mm) | 400 | 700 |
| Capacity(t/h) | 112 | 280 |
| Vibrating Feeder | ZSW130×4900 | ZSW130×4900 |
| Main Belt Conveyor | B800×11M | B1200×11M |
| Side-opening Belt conveyor(optional) | B650×4m | B650×4m |
| Gensrt(optional) | 320KW | 440KW |
| Iron separator(optional) | RCYD(C)-8 | RCYD(C)-12 |
Tire vibrating screen mobile crushing station
| Model | H3S1848 | H3S1860 | HX3S2160 |
| Transportation length(mm) | 10280 | 11480 | 11480 |
| Transportation Width(mm) | 2830 | 2830 | 3150 |
| Transportation Height(mm) | 4350 | 4350 | 4350 |
| Maximum Length(mm) | 11100 | 11800 | 11800 |
| Maximum Width(mm) | 3600 | 3600 | 3970 |
| Maximum Height(mm) | 6000 | 6000 | 6500 |
| Weight(t) | 16 | 18 | 19 |
| Tire Configuration | Dualaxial | Dualaxial | Dualaxial |
| Vibrating Screen | 3YZS1848 | 3YZS1860 | 3YZS2160 |
