MBS type rod mill, rod mill

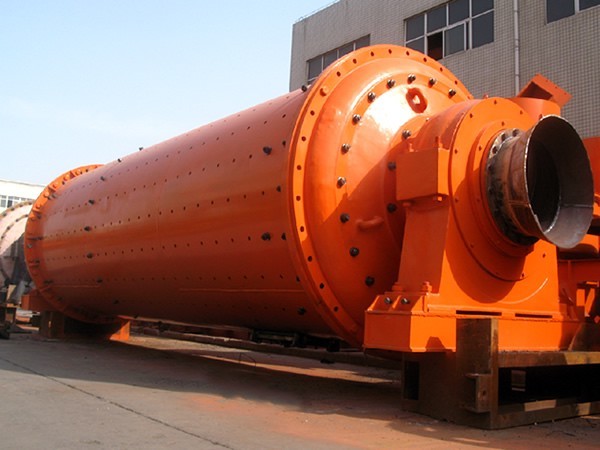

Rod Mill

Rod Mill

Applied material: quartz, iron ore, copper ore, gold ore, glass, construction waste, cement clinker, etc
Email us: machineryvip@hxjq.com
Get Latest Price Chat Online

Some Common Knowledge of Rod Mill

Rod mill has dry and wet two types to choose, users could choose depend on the fact. The company uses the advanced output controllable technology, with the fact milling material set the suitable miller, change the traditional surface contact into line contact, make the output granularity evener, high product, widely used in chemical industry, metallurgy, glasses industry, and the high requirement of the evenness for milling after milling, sand making of building sand in recent years.

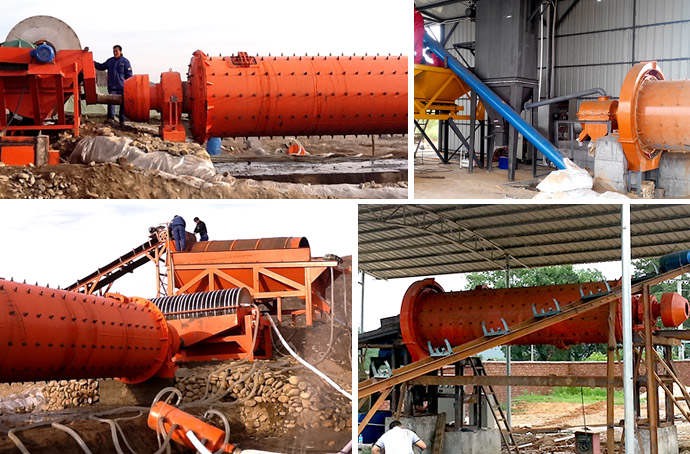

rod_mill

The Significant Advantages of Rod Mill

1. Lower power consumption
It can save 40% power by comparing with the traditional machines, which can lower the operation cost.

2. average size of those finished products, higher output.
Taking the advanced controllable technology while combining the practical experience of the customers helps the company to change the surface touch of rod mill to the line touch, which can make the discharging size be average while increasing 50% output.

Technical Data

MBS series rod grinder

Model Effective Volume
(m³)
Max.Rod Loading
(t)
Speed
(r/min)
MBS(Y)-1530 4.5 8 27
MBS(Y)-1532 4.8 8.5 27
MBS(Y)-1830 6.7 14 23.7
MBS(Y)-1832 7.2 15 23.7
MBS(Y)-2130 8.8 18 21.4
MBS(Y)-2132 9.6 20 21.4
MBS(Y)-2136 11 23 21.4
MBS(Y)-2230 10 21 19
MBS(Y)-2236 12 25 19
MBS(Y)-2430 12 25 19
MBS(Y)-2436 14 29 19
MBS(Y)-2730 15.5 32.5 18.4
MBS(Y)-2736 18 38 18.4
MBS(Y)-2740 20.6 43 18.4
MBS(Y)-3040 25.7 54 17
MBS(Y)-3230 21 44 16.4
MBS(Y)-3245 32 67 16.4
MBS(Y)-3642 38 79.5 15.8
MBS(Y)-3645 40.8 85 15.8
MBS(Y)-3650 46 96 15.8
MBS(Y)-3660 54 113 15.8

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
