Roller Crusher

Roller Crusher

Roller Crusher

Feeding size: ≤25-≤100
Email us: machineryvip@hxjq.com
Get Latest Price Chat Online

The Handling Materials and Application of Roller Crusher:

Roller crusher is mainly used for the crushing of lower-hardness mines and rocks with medium or lower rigidity in mine selection, chemicals, cement and building materials industrial production.

The Description and Function of Roller Crusher:

Roller crusher is mainly used for the crushing of brittle mines and rocks of medium or lower rightly like sinter, coke, slag, shale, limestone. It is most suitable for the mid-crushing and fine crushing work in nonmetal mines of medium and small scale and chemical industries.

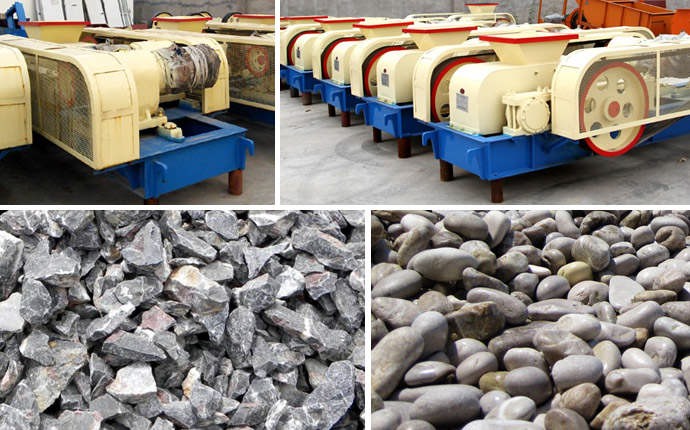

roller_crusher

The Advanced Inner Structure of Roller Crusher:

This machine mainly by roller, supporting roller bearings, compaction and adjusting device, machines and drives components. Two crushing roller respectively by key fixed axis in two. Axis of the ends for group bearing support, and installed in chassis.

Technical Data

Hydraulic roller crusher

Model Maximum Feed Size(mm) Corresponding processing capacity of discharge port(t/h)
5mm 10mm 15mm
2PGY1008 ≤40 20-80 30-110 50-150
2PGY1210 ≤60 25-100 50-180 80-240
2PGY1510 ≤80 30-130 60-240 90-330
2PGY1810 ≤100 40-170 80-320 120-450
2PGY2012 ≤120 60-220 110-400 170-600

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
