Rubber Tire Mobile Crusher

Rubber Tire Mobile Crusher

Rubber Tire Mobile Crusher

Application: ore crushing, construction waste recycling, building aggregate production, etc
Email us: machineryvip@hxjq.com
Get Latest Price Chat Online

[Processing material] building construction garbage

[Production capacity] 150 t/h

[Device configuration] FTM tire mobile crusher, feeder, belt conveyor.

[Production] the raw material size is under 800mm, and the requirement on finished granularity is under 30mm, which can widely be used in mining, coal mining and building construction garbage recycling. We can configure different crushing and screening machines according to the customers' requirement.

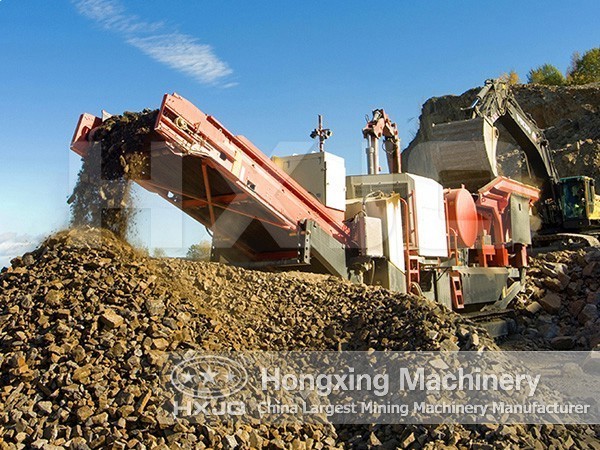

Rubber tire mobile crusher

Technical Data

Tire vibrating screen mobile crushing station

Model H3S1848 H3S1860 HX3S2160
Transportation length(mm) 10280 11480 11480
Transportation Width(mm) 2830 2830 3150
Transportation Height(mm) 4350 4350 4350
Maximum Length(mm) 11100 11800 11800
Maximum Width(mm) 3600 3600 3970
Maximum Height(mm) 6000 6000 6500
Weight(t) 16 18 19
Tire Configuration Dualaxial Dualaxial Dualaxial
Vibrating Screen 3YZS1848 3YZS1860 3YZS2160
