Cylinder capacity: 9-285m³
Processing capacity: 10-30t/h
Application area: metallurgy industry, chemical industry, building material, mining machinery.
Wood dryer can dry many kinds of materials which contain moisture, such as coal, coal slurry, slag, industrial waste, and clay stone. They are widely used in building materials, metallurgy, and chemical industry. The function of wood dryer is to dry the crushed pieces with suitable moisture.
.jpg)

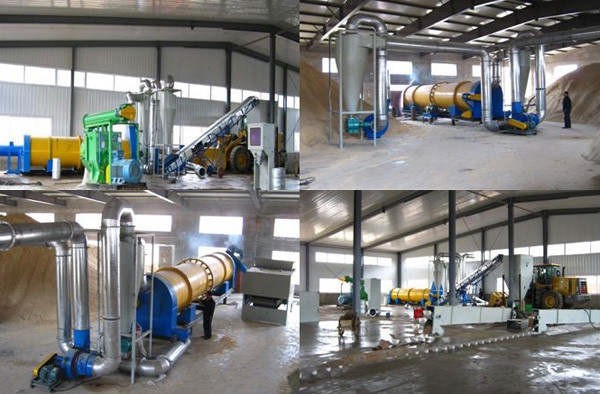

Wood dryer is formed by rotary body, lifting blade, driving device, supporting device and sealing ring. The dryer is made up of a large, rotating cylindrical tube, the dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under.
1. The lifting plate of rotary wood dryer which is arranged reasonably with changeable angles in
order to throw moisture materials into the rotary cylinder.
| Spec./m (Dia.×Length） |
Capacity （t/h） |
Highest Inlet Air Temperature （℃） |
| Φ1.2×8.0 | 1.9～2.4 | 700～800 |
| Φ1.2×10 | 2.4～3.0 | 700～800 |
| Φ1.5×12 | 4.5～5.7 | 700～800 |
| Φ1.5×14 | 5.3～6.6 | 700～800 |
| Φ1.5×15 | 5.7～7.1 | 700～800 |
| Φ1.8×12 | 6.5～8.1 | 700～800 |
| Φ1.8×14 | 7.6～9.5 | 700～800 |
| Φ2.2×12 | 9.7～12.2 | 700～800 |
| Φ2.2×14 | 11.4～14.2 | 700～800 |
| Φ2.2×16 | 13.0～16.2 | 700～800 |
| Φ2.4×14 | 13.5～16.9 | 700～800 |
| Φ2.4×18 | 17.4～21.7 | 700～800 |
| Φ2.4×20 | 19.3～24.1 | 700～800 |
| Φ2.4×22 | 21.2～26.5 | 700～800 |
| Φ2.6×24 | 27.2～34.0 | 700～800 |
| Φ3.0×20 | 30.1～37.7 | 700～800 |
| Φ3.0×25 | 37.7～47.1 | 700～800 |
| Φ3.2×25 | 42.9～53.6 | 700～800 |
| Φ3.6×28 | 60.8～76.0 | 700～800 |
Technical parameters of indirect heat dryer:
| Shell diameter ×shell Length Items |
Shell cubage （m³） |
Highest inlet air temperature （℃） |
| Φ1.5×15m | 20.27 | 850 |
| Φ1.5×17m | 22.97 | |
| Φ1.5×19m | 25.68 | |
| Φ1.8×21m | 35.91 | 850 |
| Φ1.8×23m | 39.33 | |
| Φ1.8×25m | 42.75 | |
| Φ2.2×21m | 58.10 | 850 |
| Φ2.2×23m | 63.61 | |
| Φ2.2×25m | 69.15 |
